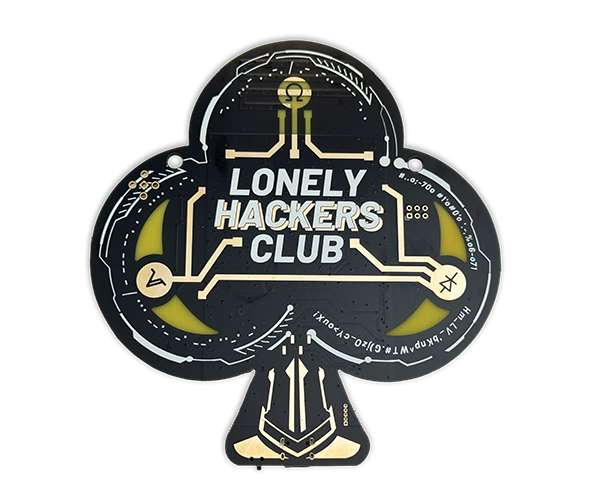

LHC Meshtastic Badge 2025

The Ultimate DEF CON Mesh Experience

Join the mesh revolution with the official LHC Meshtastic Badge 2025! Designed specifically for DEF CON attendees, this limited-edition badge combines cutting-edge LoRa technology with the hacker spirit of Lonely Hackers Club.

Featuring an ESP32-S3-N16R8 processor and SX1262 LoRa radio, this badge delivers exceptional range and performance. The integrated antenna with SWR 1.1 at 915MHz ensures optimal signal quality right out of the box, while the optional SMA connector allows for external antenna upgrades.

Each badge includes a 1000mAh Li-Ion rechargeable battery for extended operation throughout the conference. The custom Meshtastic firmware features a unique Badge control interface and RGB LED control, making your badge truly stand out in the mesh network.

$100

Limited Edition - Only 50 Available

BUY NOW
LHC Meshtastic Badge 2025

Features

  • ESP32-S3 Based Design - Latest generation processor for optimal performance
  • SX1262 LoRa Radio - Long-range communication up to several kilometers
  • Integrated Antenna - SWR 1.1 at 915MHz for optimal performance
  • External Antenna Support - SMA connector available by switching a resistor
  • Custom PCB Artwork - Unique LHC-themed design exclusive to 2025
  • 8x RGB LEDs - Programmable full-color LEDs with visual effects.
  • Pre-configured Firmware - Ready to join the DEF CON mesh out of the box
  • Rechargeable Battery - 1000mAh Li-Ion battery for extended operation
  • USB-C Charging - Modern connectivity and fast charging
  • SAO Connector - Compatible with Shitty Add-Ons for extra customization
LHC Lanyard

What's Included

  • 1x LHC Meshtastic Badge 2025
  • 1x Custom LHC Lanyard

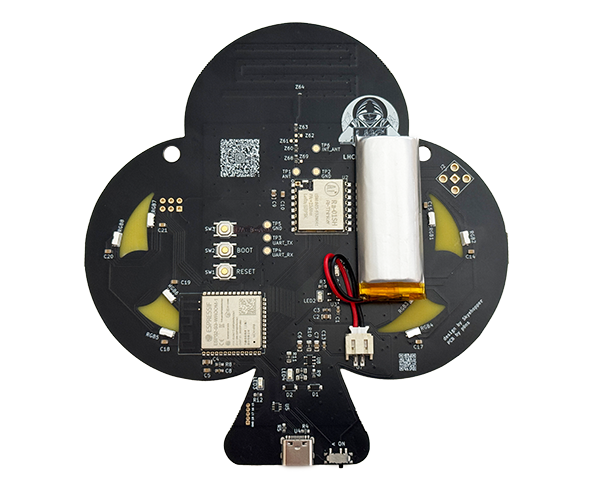

Technical Specifications

  • Processor: ESP32-S3-N16R8
  • Radio: Semtech SX1262 LoRa transceiver
  • Frequency: 915MHz (US ISM band)
  • Antenna: Integrated with SWR 1.1 at 915MHz
  • Power: 1000mAh Li-Ion rechargeable battery (included)
  • Dimensions: 140mm x 140mm

Pre-loaded Configuration#

Your badge comes pre-configured with:

  • Custom Meshtastic with Badge control interface and RGB LED control
  • DEFCONnect channel preset
  • LHC secondary channel
  • Optimized settings for large mesh networks

How to Pair#

When pairing your badge with the Meshtastic app, the 6-digit PIN code will be displayed using the first 6 RGB LEDs on your badge. Each LED represents one digit of the PIN through its color:

Color to Number Mapping:

  • Red = 4
  • Green = 5
  • Blue = 6

Example: If your LEDs show the pattern: Blue, Red, Green, Green, Blue, Red

  • LED 1 (Blue) = 6
  • LED 2 (Red) = 4
  • LED 3 (Green) = 5
  • LED 4 (Green) = 5
  • LED 5 (Blue) = 6
  • LED 6 (Red) = 4
  • Your PIN would be: 645564

The LEDs will display this pattern for 30 seconds when you initiate pairing mode. Simply read the colors from left to right and enter the corresponding numbers in the Meshtastic app to complete the pairing process.

Shipping Information#

  • DEF CON pickup only: Starting August 7, 2025

Support#

Need help with your badge? Join our community:

Frequently Asked Questions#

Q: Do I need a ham radio license to use this?
A: No! The badge operates on the 915MHz ISM band which doesn’t require a license.

Q: Can I use this outside of DEF CON?
A: Absolutely! The badge works with any Meshtastic network worldwide.

Q: Is the battery included? A: Yes! The badge includes a 1000mAh Li-Ion rechargeable battery.

Q: Can I customize the firmware?
A: Yes! The badge runs standard Meshtastic firmware and can be fully customized.

Q: Will this work with other Meshtastic devices?
A: Yes, it’s 100% compatible with all Meshtastic-compatible hardware.
